Dettagli:
Termini di pagamento e spedizione:
|
Tipo: | Adattatore della fibra & connettori, Sc | No di fibra: | 1. |
---|---|---|---|
Uso: | FTTX | Nome di prodotto: | adattatore a fibra ottica |
application: | Rete di FTTH FTTB FTTX | Colore: | Verde |
Garanzia: | 3 anni | materiale: | di plastica e ceramico |
Peso: | 5g | Temperatura di funzionamento: | -40~+85 |
Pacchetto: | CONTENITORE DI CARTONE | Vendita delle unità: | Singolo oggetto |
Singolo size  del pacchetto;: | 3X2X2 cm | Singolo peso lordo: | 0,100 chilogrammi |
Tipo del pacchetto: | polisacco, contenitore di bolla, contenitore di cartone |
Fiber optic adapter is also called fiber optic coupler. It is used to provide a cable to cable fiber connection. People sometimes also name them to be mating sleeves and hybrid adaptors. Mating sleeves means this fiber optic adapter is used to connect the same type fiber optic connectors, while hybrid adaptors are the fiber optic cable adaptor types used to connect different kinds of fiber optic connectors. We provide a complete line of adapters for fiber optic connection, like ST, SC, FC, LC, MTRJ, MPO, MU, SMA, E2000, DIN style fiber optic adapters for both multimode and single-mode fiber applications.
CATV
Telecommunication networks
Local Area Networks (LANs)
Metro networks
Data processing networks
Industrial, military and medical
Compact design
Telcordia, TIA/IEA, IEC and JIS compliance
High precision alignment
Low insertion and return loss and back reflection
Choice of metal or plastic housing, mount style & flange options
Repeatability: ≥1000 times
Insert loss: SM ≤0.2 dB, MM ≤ 0.3 dB
Compatibility: ≤ 0.2 dB

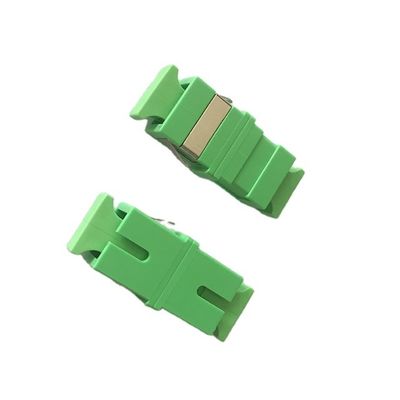

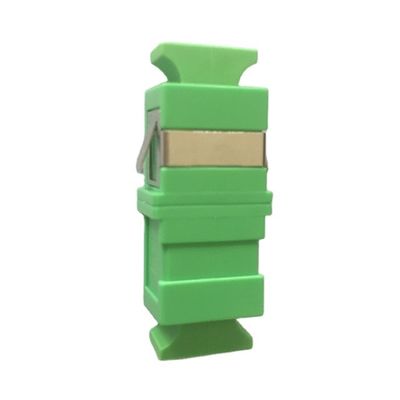

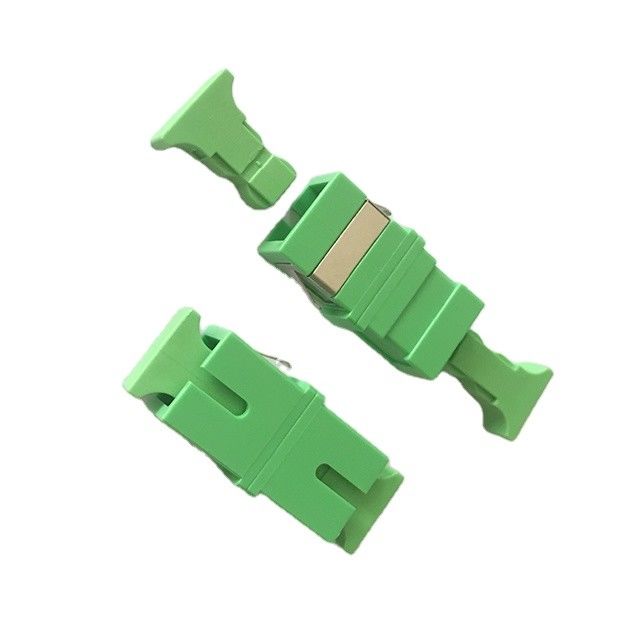

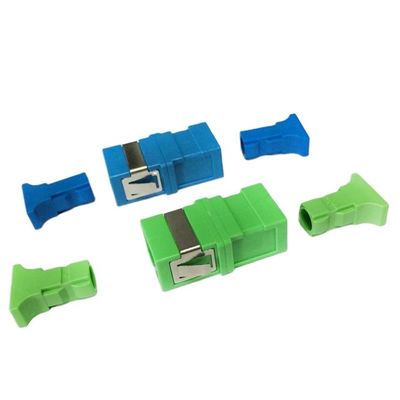

The SC Optical fiber adapters has simplex, duplex, hybrid types. According to shape, it has flange, flangeless, inner shutter, external shutter, etc.
According to color, it has blue, green, beige, black, aqua, purple etc.
The normal housing material is plastic, also has metal housing.
20pcs/box, also can pack in PE bag if you required.
Use hign strong carton to protect the goods.
Haiyu optical has award ISO CE and Rosh certificate for our products.
OEM & ODM is accepted, any questions welcome to contact us.
Sales Manager: Joyce Tan
Phone: 86 13066935405
Tel: 86 755 29467029
Email: hyglink[a]hyglink.com
Skype: joycetan75
Weichat: tan_aihua
